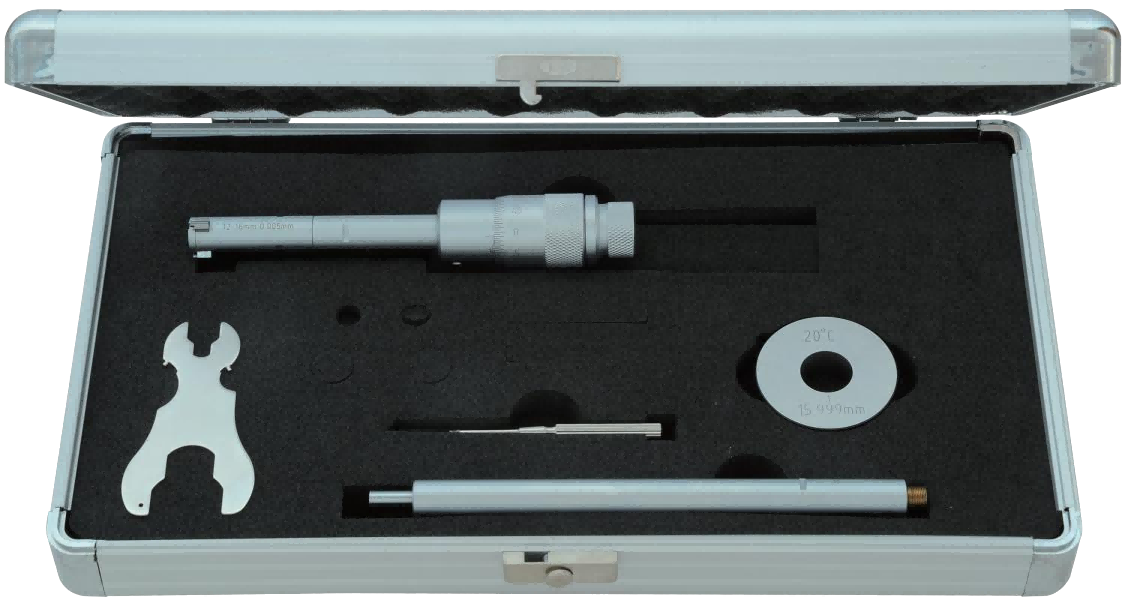

内径千分尺
适用于盲孔和通孔的细密丈量 。
硬质合金丈量面（不包括6-12mm） 。
棘轮测力 。
配有校对环规 。
区分力：丈量规模12mm以内0.001mm 。 丈量规模12mm以上0.005mm 。

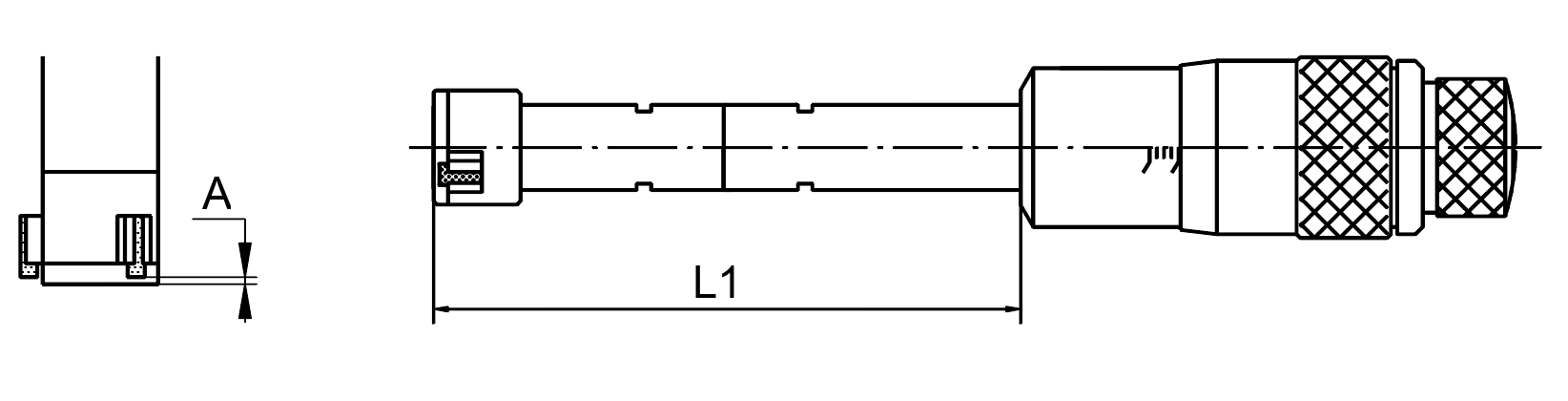

| 货号 | 丈量规模 | 精度 | 校对环规 | L1 | A | 接长杆 |
|---|---|---|---|---|---|---|
| 外外貌镀铬 | ||||||
| 315-01-110 | 6-8mm | 0.004mm | Φ6mm | 54.5mm | 1.5mm | 100mm |
| 315-02-110 | 8-10mm | 0.004mm | Φ8mm | 54.5mm | 1.5mm | 100mm |
| 315-03-110 | 10-12mm | 0.004mm | Φ10mm | 54.5mm | 1.5mm | 100mm |
| 315-04-070 | 12-16mm | 0.004mm | Φ16mm | 80mm | 0.5mm | 150mm |
| 315-05-070 | 16-20mm | 0.004mm | Φ16mm | 80mm | 0.5mm | 150mm |
| 315-06-070 | 20-25mm | 0.004mm | Φ25mm | 90mm | 0.5mm | 150mm |
| 315-07-070 | 25-30mm | 0.004mm | Φ25mm | 90mm | 0.5mm | 150mm |
| 315-08-070 | 30-40mm | 0.004mm | Φ40mm | 97mm | 0.5mm | 150mm |
| 315-09-070 | 40-50mm | 0.005mm | Φ40mm | 97mm | 0.5mm | 150mm |
