外径千分尺
丈量行程大。
利便单手使用。
IP54防护品级。
前后双面显示屏 ，可通过按键调解显示屏显示偏向 ，便于左、右手使用和恣意丈量状态下的读数。
通电后 ，显示值即为绝对丈量的起始值。
硬质合金丈量面。
棘轮套测力。
微分头行程：30mm。
| 货号 | 丈量规模 | 精度 | 区分力 |
|---|---|---|---|
| 193-01-630 | 0-30mm | ±0.002mm | 0.001mm |
| 193-02-630 | 20-50mm | ±0.002mm | 0.001mm |
| 193-03-630 | 45-75mm | ±0.003mm | 0.001mm |
| 193-04-630 | 95-125mm | ±0.003mm | 0.001mm |
| 193-05-630 | 120-150mm | ±0.003mm | 0.001mm |
| 193-06-630 | 145-175mm | ±0.003mm | 0.001mm |
| 193-07-630 | 170-200mm | ±0.004mm | 0.001mm |
| 193-08-630 | 195-225mm | ±0.004mm | 0.001mm |
| 193-09-630 | 220-250mm | ±0.004mm | 0.001mm |
| 193-10-630 | 245-275mm | ±0.004mm | 0.001mm |
| 193-11-630 | 270-300mm | ±0.005mm | 0.001mm |
| 193-12-630 | 275-300mm | ±0.005mm | 0.001mm |

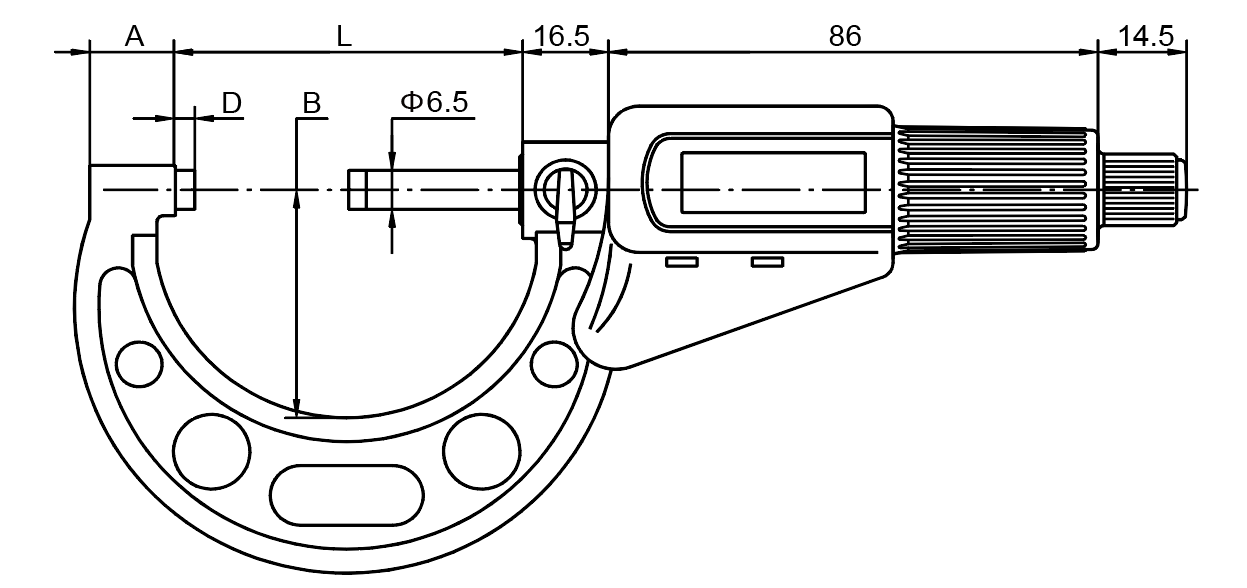

| 丈量规模 | A | B | L | D |
|---|---|---|---|---|
| 0-30mm | 9mm | 35mm | 37mm | 3.0mm |
| 20-50mm | 14mm | 38mm | 57mm | 3.0mm |
| 45-75mm | 15mm | 49mm | 82mm | 3.0mm |
| 95-125mm | 15mm | 60mm | 107mm | 3.0mm |
| 120-150mm | 16mm | 73mm | 133mm | 3.0mm |
| 145-175mm | 16mm | 85mm | 158mm | 3.0mm |
| 170-200mm | 19mm | 104mm | 183mm | 5.5mm |
| 195-225mm | 19mm | 117mm | 209mm | 5.5mm |
| 220-250mm | 19mm | 130mm | 234mm | 5.5mm |
| 245-275mm | 19mm | 142mm | 260mm | 5.5mm |
| 270-300mm | 19mm | 155mm | 285mm | 5.5mm |
| 275-300mm | 19mm | 168mm | 310mm | 5.5mm |
| 开/要害 | √ |
| 绝对/相对丈量模式转换 | √ |
| 公制/英制丈量模式转换 | √ |
| 绝对丈量初始值设置键 | √ |
| 显示偏向调解键 | √ |
| 电池型号 | CR2032 |
| 自动断电 | √ |
| RS232输出接口 | √ |
| 接口电缆（选配） | P1101 |
